NPT Fittings Explained: What They Are, How They're Used, and How to Measure Them Right

You've been there. A replacement fitting arrives, you thread it in, it engages two turns and stops. Not stripped. Not cross-threaded. Just stuck. NPT fittings seem straightforward until you're standing in front of a process line trying to figure out why your threads won't fully engage, why your connection is leaking, or why the replacement you ordered came back wrong. Most of the confusion traces back to the same root causes: misunderstanding what NPT actually stands for, using the wrong thread type for the application, or measuring the fitting the same way you'd measure sanitary tubing.



What NPT Actually Stands For:

NPT operates at two levels within the American National Pipe Standard, which is the governing technical standard for all threaded pipes and fittings used in the United States. At the top level, "National Pipe Thread" is used as a catch-all term for the entire family of American threaded pipe standards. But within that family, there are distinct sub-categories:

• National Pipe Tapered (NPT):  threads that taper along their length, getting progressively larger toward the end of the pipe
• National Pipe Straight (NPS): threads with a consistent diameter along their full length, with no taper

What does NPT stand for specifically? NPT refers to National Pipe Tapered, the tapered sub-type. So when someone says "NPT fitting," they typically mean a tapered-thread fitting, even though NPT is also used loosely to describe threaded pipe fittings in general.

NPT vs NPS: The Practical Difference

National Pipe Tapered (NPT) threads seal through mechanical interference, as the tapered threads are tightened together, the taper causes the threads to compress against each other, creating a pressure-resistant seal. In most cases, a properly matched NPT pipe thread connection can be hand-tightened to a functional seal, with thread sealant added for additional protection.

National Pipe Straight (NPS) threads have the same thread pitch and angle as NPT but without the taper. They're designed to be used with gaskets or O-rings to achieve a seal rather than relying on thread compression. NPS is common on mechanical couplings, gauges, and certain instrumentation connections.

Here's the critical practical point: NPT and NPS threads will engage each other, they share the same pitch and 60° thread angle but only for a turn or two before the taper of the NPT thread jams against the straight NPS thread and prevents full engagement. If you're threading a fitting and it only turns two or three times before binding, you're almost certainly looking at an NPT vs NPS mismatch.

Why Tapered Threads Are Preferred in Sanitary Environments

In sanitary processing environments, the preference for NPT pipe thread over NPS comes down to one practical advantage: hand-tightening capability.

Sanitary fittings are designed to avoid tool marks, scratches, and surface damage that can harbor bacteria or compromise the finish of hygienic components. NPT's tapered thread design allows fittings to be tightened and achieve a functional seal using hand strength alone in many lower-pressure utility applications. That means faster assembly, easier disassembly, and no risk of tool damage to the fitting surface. For utility connections that don't require frequent removal, it's a clean, practical solution.

The American National Pipe Standard also differs significantly from its European counterpart, the British Standard Pipe (BSP) system, which uses a different thread angle and pitch. If you're working with imported equipment or European-sourced components, confirm the thread standard before ordering BSP and NPT fittings are not interchangeable.

Where NPT Fittings Belong in a Sanitary Facility

NPT fittings are designed for threaded, pressure-rated connections in systems that do not require frequent disassembly or in-place cleaning. In a sanitary facility, that covers a specific and well-defined set of applications:

CIP utility lines: NPT pipe fittings are commonly used on the supply and return lines for clean-in-place systems, particularly on connections that are permanent or semi-permanent and don't require regular removal. The non-product-contact nature of many CIP utility connections makes NPT a practical choice where the hygienic requirements of the product line don't apply.

Instrumentation connections: Pressure gauges, thermowells, flow sensors, and level sensors frequently use NPT threads for their process connections. These fittings are installed semi-permanently, subject to vibration and pressure cycling, and rarely removed outside of scheduled maintenance. NPT's mechanical seal and vibration resistance make it the standard choice for instrumentation in food, beverage, and dairy facilities.

Steam and air utility lines: NPT pipe connections are the default for steam distribution, compressed air, and pneumatic systems throughout a processing facility. These lines operate under pressure, don't require hygienic disassembly, and benefit from the pressure-rated mechanical seal that tapered NPT threads provide.

Water supply lines: General-purpose water connections, makeup water lines, and non-product utility water systems are routinely plumbed with NPT fittings in stainless steel for corrosion resistance and longevity.

Who Uses NPT Fittings in Sanitary Processing

• Food and beverage producers: utility systems, CIP supply, instrumentation.
• Dairy operators: water lines, steam systems, pressure gauge connections.
• Brewery and beverage facilities: utility plumbing, glycol supply connections, instrumentation.
• Biopharma auxiliary systems: air and steam utility lines, process support connections.
• Industrial manufacturing: general process utility, instrumentation, gas systems.

The One Rule That Covers Most Decisions

If the connection in question doesn't need to be regularly disassembled for cleaning or inspection, NPT is likely the right candidate. Permanent or semi-permanent installations that operate under pressure, handle vibration, or connect instrumentation are the natural home for NPT pipe fittings in a sanitary facility. If the line is product-contact, requires frequent cleaning, or needs to be taken apart and inspected on a regular basis that's where your sanitary Tri-Clamp or other quick-connect fittings earn their place.

How to Measure NPT Fittings

Here's where most sanitary processing buyers run into trouble. In the sanitary tubing world, everything is measured by outside diameter. A 1.5" tri-clamp fitting is 1.5" OD. A 2" ferrule is 2" OD. The measurement you take with calipers matches the number on the fitting. It's intuitive. NPT fittings don't work that way.

The Nominal Pipe Size Problem

NPT fittings are sized by nominal pipe size (NPS): a designation system based loosely on inside diameter that predates modern standardization and, critically, doesn't directly match any actual physical measurement on the fitting.

A 1/2" NPT fitting does not have a 0.5" OD, a 0.5" ID, or any dimension that is exactly 0.5". The nominal size is a historical designation that approximates the inside diameter of older, thicker-wall pipes. When the industry standardized on thinner wall thicknesses, the OD grew to accommodate it, but the nominal size designation stayed the same. The result is a system where NPT sizes feel "off" to anyone coming from the sanitary tubing world.

A useful memory trick: Pipe has an "i" in it,  so measure by the Inside diameter. Even then, the inside diameter won't exactly match the nominal size, but it's the closer of the two dimensions.

How to Actually Measure NPT Threads

To confirm the size of an NPT fitting you already have in hand, you'll need three measurements:

1. Thread Pitch Use a thread pitch gauge to determine the number of threads per inch (TPI). Match the gauge teeth to the threads until you find the one that aligns perfectly the number on that gauge is your TPI. NPT thread dimensions are defined in part by TPI, so this is your first confirmation step.

2. Outside Diameter Use a thread caliper to measure the OD of the threaded section. On a tapered NPT thread, measure at the widest point the end of the fitting away from the entry point. This gives you the major diameter of the thread.

3. Depth of Engagement Use a depth gauge to measure how far the threaded section extends. Proper thread engagement is critical for a pressure-resistant seal too shallow and the connection will leak; too deep and you may damage the fitting or associated equipment.

Once you have TPI, OD, and engagement depth, cross-reference against the NPT thread chart below. NPT pipe thread dimensions are fully standardized, if your measurements match the table, you have your size confirmed.

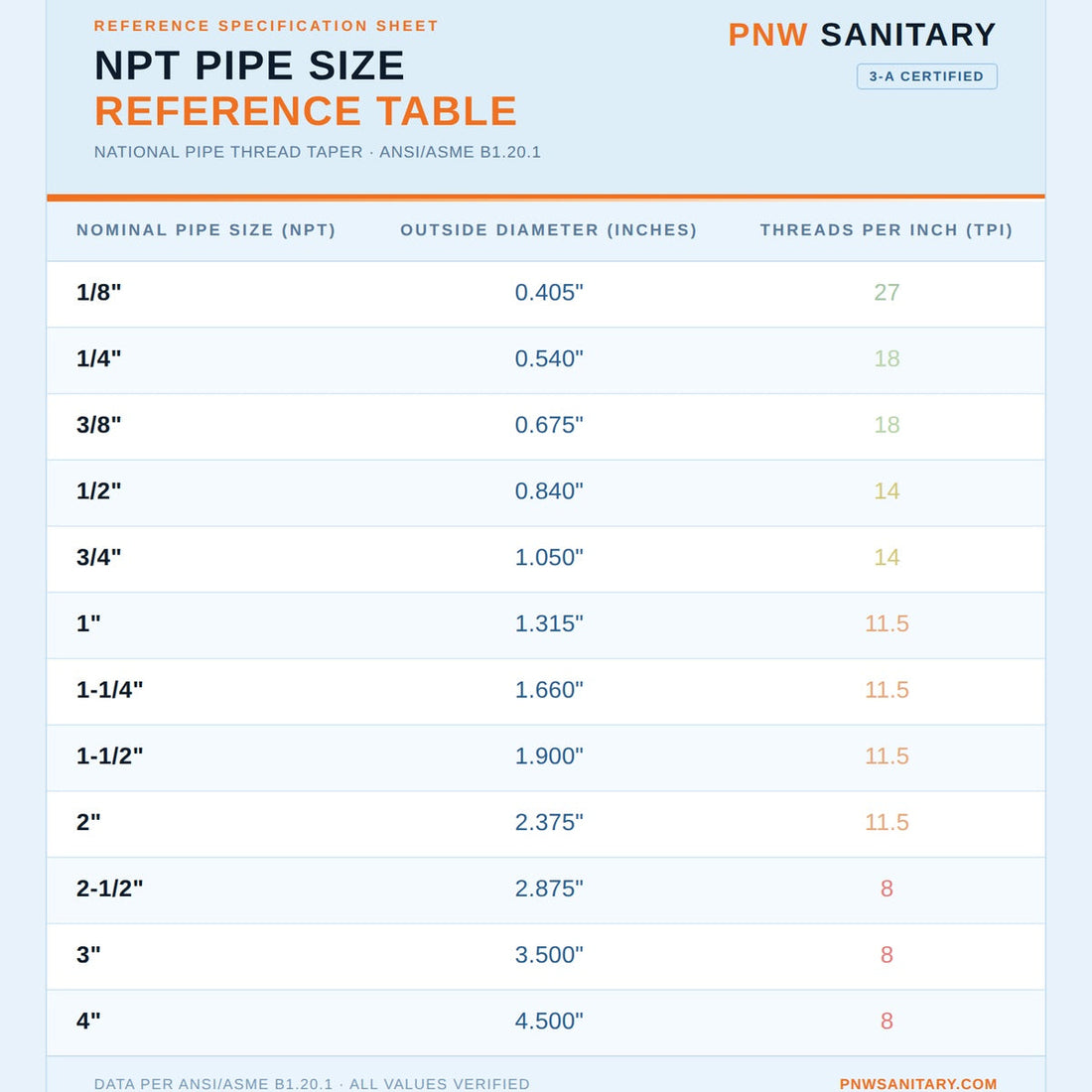

This NPT size chart covers the most common sizes used in sanitary process facilities. Notice that 1/4 NPT and 3/8 NPT share the same TPI (18), which is why OD measurement matters, TPI alone won't differentiate between adjacent sizes at this range. Similarly, 1/2 NPT through 2" NPT all share 14 or 11.5 TPI, making OD the primary differentiator in that range.

NPT thread dimensions can also be confirmed using reference materials from ANSI/ASME B1.20.1, which is the governing standard for NPT pipe threads in the United States.

Thread Sealant, When You Need It and When You Don't

NPT's tapered thread is designed to create a mechanical seal through thread interference. In theory, a well-matched NPT connection can seal without any additional sealant in lower-pressure, non-critical applications. In practice, thread sealant is almost always used but the type matters, especially in food, beverage, and dairy environments.

When Teflon Tape Is the Right Choice

PTFE thread seal tape (commonly called Teflon tape) is the standard sealant for most NPT fittings in sanitary utility applications. It's applied by wrapping 2–3 layers clockwise around the male threads before assembly. Teflon tape works well for water lines, air, steam at moderate temperatures, and general utility connections.

For food, beverage, and dairy applications, use FDA-compliant, white PTFE tape only. Standard hardware-store thread tape is generally food-safe, but confirm the product specification before using it on any line that could have incidental food contact. Pink or colored thread tapes often used in plumbing for identification are not all food-grade.

When Pipe Dope Is Appropriate

Pipe thread sealant compound (pipe dope) provides a more robust seal than tape for high-pressure or high-temperature applications. In sanitary facilities, pipe dope is appropriate for steam lines and compressed air systems operating at elevated pressure. As with tape, confirm food-grade compliance before using any compound near product-contact areas. Many standard pipe dopes contain materials not approved for food environments.

When No Sealant Is Needed

In certain instrument connections particularly those using a tapered NPT fitting threading into a matching NPT port on a gauge or transducer the manufacturer's recommendation may be no sealant at all if the connection is metal-to-metal and designed for the specific fitting. Always follow equipment manufacturer guidance in these cases.



PNW Sanitary NPT Fittings

PNW Sanitary NPT pipe fittings are manufactured from 304 and 316L stainless steel to the same production standards as our certified sanitary line. Every fitting is PMI tested in-house using our SciAps X-550 XRF spectrometer giving you confirmed alloy chemistry and full material traceability on every order. No reseller markup, no borrowed certifications.

Questions about your specific application? Contact us, we're happy to help you spec the right fitting for your system.
