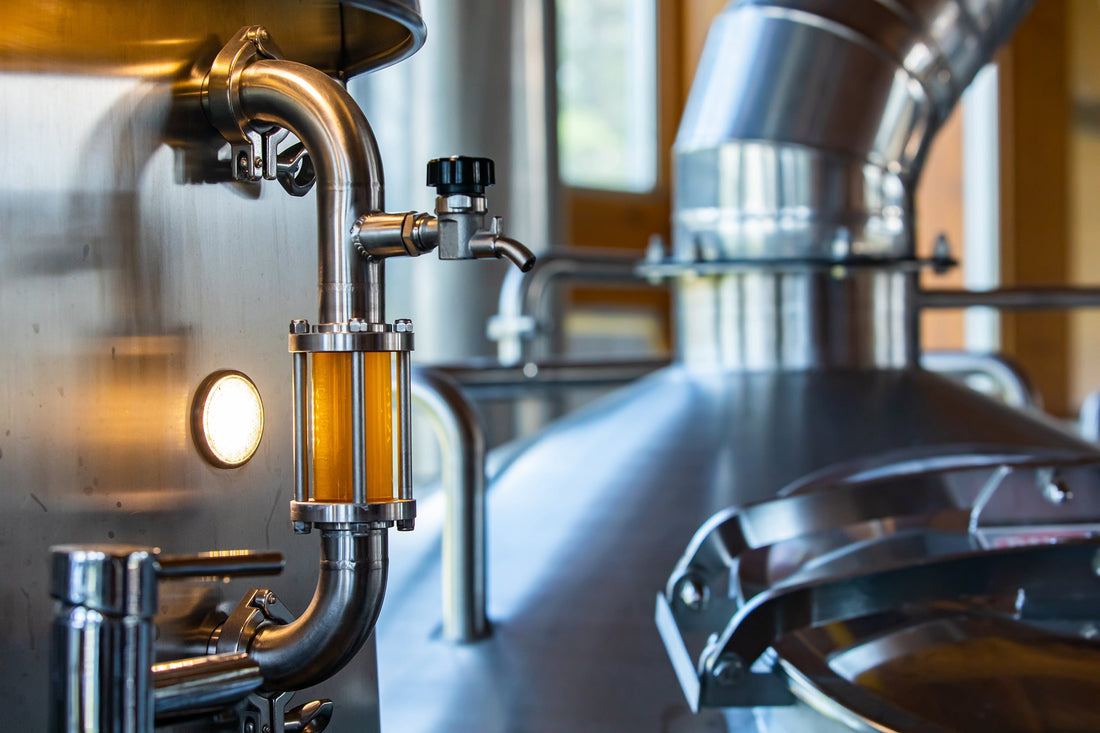

10 Hygienic Design Principles That Reduce Contamination Risk

Contamination control in a sanitary processing system starts with design: how the piping is laid out, what fittings connect it, and whether every surface product touches is built to drain, seal, and clean the way it should.

Whether you're building out a new line or auditing an existing one, our PNW Sanitary team put together the ten principles below. They cover the fundamentals that keep a hygienic system actually hygienic.

1. Minimize Dead Legs

Any section of pipe where product can sit stagnant becomes a breeding ground for bacteria, and it's often a spot cleaning solutions can't fully reach. Dead legs are one of the most common contamination sources in poorly designed systems.

As a rule of thumb, ASME BPE targets a length-to-diameter ratio (L/D) of 2 or less on any branch, measured from the centerline of the main run to the end of the branch. Older guidance allowed up to 6D, but modern hygienic design treats 2D as the real goal. Short-outlet tees and close-coupled valves are the practical way to get there.

2. Design for Full Drainability

Sanitary systems should slope toward drain points, with no low spots where liquid can pool. Standing moisture after a wash cycle undermines the whole point of cleaning in the first place.

ASME BPE lays out slope designations for gravity-drained lines, ranging from about 1/16" per foot up to 1/4" per foot. Many process lines are designed around 1/8" per foot as a working target, with a steeper slope where full drainability after CIP really matters. Which designation applies depends on the process, and should ultimately be set by the system designer.

3. Use the Right Surface Finish

Surface roughness matters as much as material choice. A smoother interior finish, measured in Ra values, gives bacteria fewer places to anchor and makes CIP (clean-in-place) cycles more effective.

3-A Sanitary Standards call for product contact surfaces to be at least a No. 4 finish, with a maximum roughness of 32 microinches (0.8 micrometers) Ra. Pharmaceutical and biotech systems built to ASME BPE typically specify tighter finishes, commonly 20 microinches (0.5 micrometers) Ra mechanically polished, or as low as 15 microinches (0.4 micrometers) Ra electropolished.

Our Sanitary Tube collection is produced to ASTM A270 with a polished OD and ID at 32 Ra, and for most applications we recommend 316L stainless as the default material.

4. Avoid Threaded (NPT) Connections in Product-Contact Zones

Threaded fittings create crevices where product and cleaning fluid can hide in the thread pitch, and there's no real hygienic case for NPT threads sitting in a product contact zone.

Threaded connections still show up in utility and non-product-contact service, things like air, water, drain, and instrument ports, which is why we stock both threaded and Tri-Clamp fittings. If a threaded utility line has to meet a sanitary line, a Tri-Clamp by NPT adapter keeps the threads on the utility side of the joint, out of contact with product.

See our Tri-Clamp Fittings collection for compatible ferrules and fittings.

5. Select Gasket Material Based on the Process, Not Just Price

Buna and PTFE gaskets aren't interchangeable. Chemical exposure, temperature, and cleaning chemicals all affect gasket performance and lifespan differently.

The short version comes down to temperature and chemistry. Buna-N (nitrile) is the economical choice for water, dairy, and many food products at moderate temperatures, generally up to around 250°F. PTFE handles aggressive chemicals, solvents, and higher temperatures, up to roughly 450°F, but it's less elastic and can cold-flow over time, which makes it a poor fit for joints that get opened and reclamped often. EPDM sits in between and is the common choice for steam and hot CIP service.

Whatever you land on, always check the gasket manufacturer's compatibility chart against your product, your CIP chemicals, and your peak temperature. Browse our Gaskets collection to compare options.

6. Avoid Rouge Formation on Stainless Surfaces

Rouge forms on stainless steel surfaces exposed to certain water chemistries or heat cycles over time. Left unmanaged, it can affect both cleanability and product purity.

Rouge is a thin iron-oxide film that forms when the passive chromium-oxide layer on stainless breaks down, most often in hot high-purity water and clean steam systems. It's typically grouped into three classes: Class I is a loose, wipeable film carried in from elsewhere in the system, Class II forms in place and is more adherent, and Class III is the dark, tightly bonded film found in high-temperature steam service.

The practical difference from rust is that rouge is a surface film that can be removed through derouging and repassivation, while true rust means the base metal itself is corroding. Water chemistry, proper passivation after fabrication, and good CIP practice are the main ways to keep it in check.

7. Choose Tri-Clamp or Butt-Weld Based on Access, Not Habit

Once threaded connections are out of the product zone, the next decision is whether a given joint should be Tri-Clamp or butt-weld. The dividing line is access.

Butt-weld fittings belong anywhere a joint won't need to come apart: long transfer runs, headers, and any location where a gasket would just be a maintenance point with no real purpose. Orbital-welded butt-weld joints eliminate the gasket entirely, removing a common failure point and creating a smoother internal surface. Tri-Clamp connections belong at service points instead: pumps, valves, instruments, filters, and anywhere the line gets opened for inspection or maintenance.

Designing this way minimizes the number of gaskets in your system while keeping every serviceable component easy to get to. See our Butt-Weld Fittings collection for options.

8. Account for Thermal Expansion in Long Tubing Runs

Stainless tubing expands and contracts with temperature swings, especially in steam or CIP cycles. Systems designed without room for this movement can develop stress at joints and welds over time.

Austenitic stainless expands roughly 9 to 10 millionths of an inch per inch per degree Fahrenheit, about 50% more than carbon steel. On a 100-foot run, a 200-degree swing between ambient and CIP or steam temperature moves the tube on the order of 2 inches. That's negligible on a short skid, but significant on a long header, which is why longer runs typically use expansion loops, offsets, or guided supports. Your installer should account for this at anchor points and at connections to fixed equipment.

9. Support Tubing Properly to Prevent Sagging

Improper or infrequent hanger spacing can cause tubing to sag over time, creating new low points and dead legs in a system that was originally designed to drain properly.

Support spacing depends on tube OD, wall thickness, operating temperature, and the weight of the fluid inside, so there's no single universal number. ASME BPE publishes recommended support spacing tables by tube size, and spacing tightens for smaller tubing, at changes of direction, and near valves or heavy inline components. Supports should also be selected to allow for the thermal movement described above, rather than pinning the tube rigidly in place.

10. Plan for Future Expansion From the Start

Systems built without extra capacity or accessible connection points get expensive fast when it's time to add capacity.

A few practical ways to build this in from day one: capped Tri-Clamp stubs on headers where a future branch is likely, valves sized for planned flow rather than just current flow, and clearance left around skids and pump bases for a second unit down the line. Each of these costs very little at install and avoids cutting into and rewelding a live system later.







Hygienic design is a series of decisions, from the fittings you choose to the finish on your tubing. Getting these fundamentals right up front saves time & product loss.
