Understanding Tri-Clamp Clamps: Single-Pin, Double-Pin, High-Pressure & Safety Clamps

Tri-Clamp connections rely on a simple but extremely effective sealing system: two ferrules, a gasket, and a clamp that holds everything together. While ferrules and gaskets are fairly standardized, clamps come in multiple styles—each designed for different pressure ratings, alignment needs, and safety requirements.

This guide explains the four most common Tri-Clamp clamp types and how to choose the right one for your sanitary process line.

Single-Pin Clamps

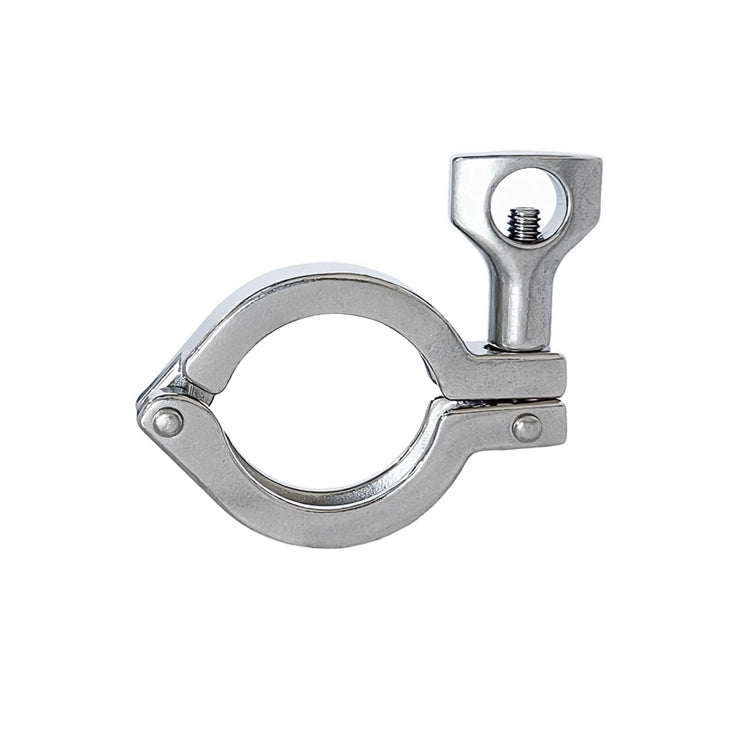

Single-pin clamps are the most common style used in food, beverage, brewery, and dairy processing. They feature a single hinge and a single tightening bolt (wing nut or hex nut).

Advantages:

  • Fast and easy to install
  • Lightweight and cost-effective
  • Ideal for low- to medium-pressure applications
  • Perfect for frequent assembly/disassembly

Best for: Breweries, distilleries, dairies, small-batch processing, R&D setups, and general hygienic applications.

Double-Pin Clamps

Double-pin clamps (also called two-pin or dual-hinge clamps) offer improved alignment and sealing consistency. The dual hinge provides a smoother, more even closing action around the ferrules.

Advantages:

  • More consistent compression around the entire ferrule
  • Better alignment for larger diameter tubing
  • Ideal for 2.5", 3", and 4" Tri-Clamp sizes
  • Reduces risk of gasket pinching during installation

Best for: Larger-diameter lines, long vertical drops, and applications where alignment is critical.

High-Pressure Tri-Clamp Clamps

High-pressure clamps are designed for demanding applications where standard clamps may deform, loosen, or fail. These clamps typically feature a bolted or heavy-duty locking mechanism rather than a wing nut.

Key features:

  • Rated for significantly higher internal pressure
  • Bolted design prevents loosening from vibration
  • Thicker, reinforced clamp body improves sealing strength
  • Often paired with Teflon/PTFE gaskets for aggressive or high-heat processes

Best for: Pressurized systems, pump discharge lines, carbonated beverage production, steam zones, and high-temperature processing.

Important: Always verify the pressure rating of both the clamp and the gasket—overall system pressure rating is limited by the lowest-rated component.

Safety Clamps

Safety Tri-Clamp clamps include a retaining mechanism that prevents accidental loosening or separation, making them essential in applications where vibration, pressure spikes, or personnel safety are concerns.

Safety styles vary but commonly include:

  • A locking latch or retaining clip
  • A safety pin to prevent wing-nut disengagement
  • Reinforced hinge alignment for added security

Advantages:

  • Prevents accidental disconnection
  • Reduces risk of product spills or operator injury
  • Ideal for high-motion or high-risk env
