What Fittings Does a Data Center Liquid Cooling System Actually Need? PNW Sanitary Explains

Most conversations about data center infrastructure focus on servers, power, and networking. Cooling is usually an afterthought, right up until something leaks.

That's changing. As rack densities climb and AI infrastructure keeps scaling, air cooling alone can't keep up. Liquid cooling is becoming standard in commercial data center builds, and the components connecting those systems need to be specified with the same care as any other process piping. PNW Sanitary stocks the stainless steel fittings and tubing built for exactly these applications, shop our data center cooling components here.

Here's what that actually looks like from a fittings and tubing standpoint.

Why Sanitary Fittings in a Data Center?

Sanitary fittings are associated with food processing, dairy, and pharmaceutical manufacturing, so what are they doing in a server room?

It comes down to what they're built for. Sanitary stainless steel fittings are designed for leak-free, corrosion-resistant connections in high-purity fluid systems. They handle thermal cycling, aggressive chemicals, and demanding pressure conditions. Those are the same conditions inside a liquid cooling loop carrying deionized water, glycol mixtures, or dielectric fluid. A leak in that system doesn't just cause downtime, it can take out servers and trigger a full facility event.

We've seen this firsthand at PNW Sanitary. A growing number of customers are already specifying sanitary fittings for their liquid cooling builds. We are seeing not just standard butt-weld elbows and tubing, but tight radius 90s and 45s for close-coupled rack layouts where a standard long-radius fitting won't fit. What drives the specification is almost always the same: material traceability. These customers need the documentation that comes with 3-A certified fittings. Knowing what alloy is in the system and being able to prove it isn't optional at this level.

The Main Cooling Architectures and What They Need

Direct-to-Chip

Cold plates sit directly on the processor, with coolant running through a manifold out to each server. The connections are small diameter, high precision, and need to be absolutely leak-free since they're running directly above live hardware.

The 2WCL 90-degree profile in a tight radius configuration allows routing in constrained rack layouts where a standard long-radius fitting simply won't clear. A 32Ra sanitary finish on the ID keeps surfaces clean and crevice-free, and 316L stainless is the preferred material for its resistance to the deionized water and glycol mixtures most commonly used as coolants.

Coolant Distribution Units (CDUs)

The CDU regulates coolant temperature and pressure and distributes it to the racks. Supply and return headers typically run 2-inch through 4-inch OD, using butt-weld fittings for permanent joints and tri-clamp connections at serviceable points where the unit needs to be maintained without cutting pipe.

Dimensional consistency is the key spec here. CDUs from different manufacturers use standardized sanitary tube OD sizing, so the fittings need to be manufactured to tight tolerances for proper weld fit-up under pressure.

Rear-Door Heat Exchangers

These capture heat from server exhaust before it reaches the data hall. The fitting requirements are a bit different, you're often connecting to a building chilled water supply on one side and sanitary process piping on the other. Tri-clamp to NPT adapters come up frequently here because they bridge the two connection standards cleanly. PNW Sanitary carries both male and female NPT adapters in 304 and 316L you can browse the full selection at here.

Primary and Secondary Cooling Loops

Most enterprise liquid cooling deployments use a two-loop architecture. A primary loop ties into the building's chilled water or cooling tower. A secondary loop circulates coolant directly to the IT equipment. A heat exchanger plate transfers thermal energy between the two without mixing the fluids.

Deionized water is highly corrosive to standard carbon steel and some grades of stainless. 316L is the right call here since the higher molybdenum content gives it better resistance to chloride pitting and crevice corrosion over long operating cycles.

The Fittings That Come Up Most

Butt-Weld Elbows

The 2WCL 90-degree and 2WK 45-degree elbows are the workhorses. For tight rack layouts, the tight radius 2WCL makes the same directional change in a significantly shorter run. All should be polished to 32Ra on the ID and OD to eliminate crevices and support long-term cleanability. PNW Sanitary stocks both standard and tight radius configurations in 304 and 316L, shop the full butt-weld elbow lineup at here.

Sanitary Tubing

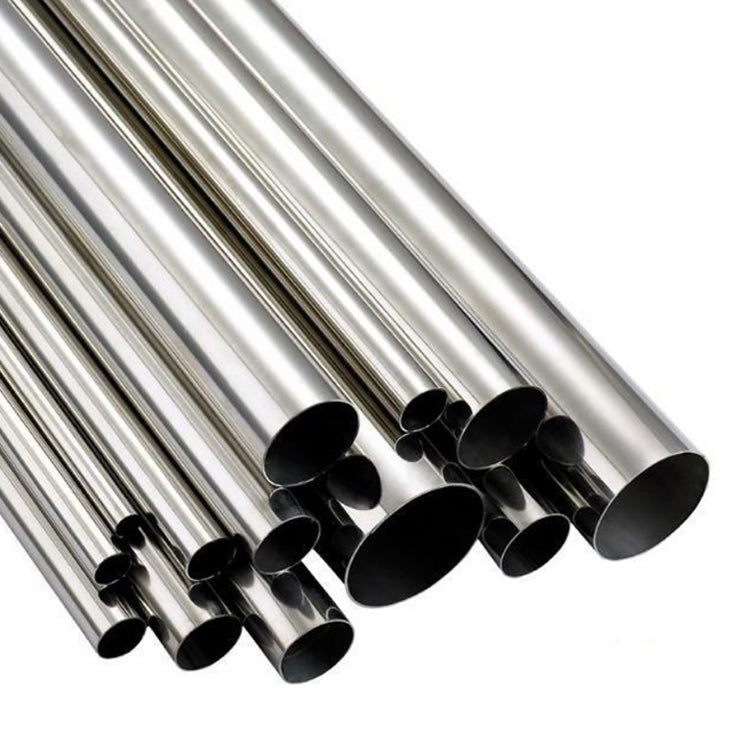

ASTM A270 sanitary tubing in 316L is the standard for liquid cooling loops. It specifies material, dimensions, and surface finish requirements for consistent weld fit-up and long-term performance. PNW Sanitary supplies tubing in convenient 4-foot lengths with no cutting or broken-box fees, individually poly-sleeved and PMI-tested before it ships.

Tri-Clamp Fittings

Not every connection is permanent. CDU connections, filter housings, and sensor ports need to be accessible for maintenance without cutting and re-welding pipe. A tri-clamp connection comes apart with a single clamp, the gasket gets replaced, and the system is back in service in minutes.

Gaskets

Gasket material depends on your coolant chemistry. For deionized water loops, EPDM and PTFE are both solid choices. EPDM handles thermal cycling well and works with most glycol mixtures. PTFE is the safe call when chemical compatibility is uncertain — it's inert against nearly all coolant additives. Avoid Buna for extended deionized water service as it can swell over time and compromise the seal.

Why Material Verification Matters Here

In a food plant, the wrong alloy is a compliance problem. In a data center cooling loop, it's a corrosion problem that develops slowly and fails at the worst possible time.

Deionized water is particularly aggressive toward materials that aren't what they claim to be. Counterfeit or mismarked stainless fittings exist in the market and look identical to certified product, until they start pitting from the inside.

This is why PNW Sanitary PMI tests every fitting using a SciAps X-550 XRF spectrometer before it ships. Every order comes with full material traceability documentation. For a data center operator specifying components for a 10-year cooling infrastructure, that accountability matters. Have questions about a specific application or want to verify compatibility before ordering? Contact us directly here and we're happy to help you spec the right fitting for your system.

The Bottom Line

Liquid cooling in data centers is a process piping problem. The fittings connecting a direct-to-chip system or CDU manifold are not commodity hardware they're engineered components that determine whether the system runs reliably for a decade.

Sanitary stainless fittings manufactured to verified material standards, polished to a consistent internal finish, and backed by PMI documentation are the right call. Not because it's a sanitary system in the traditional sense, but because the performance requirements are exactly the same.
