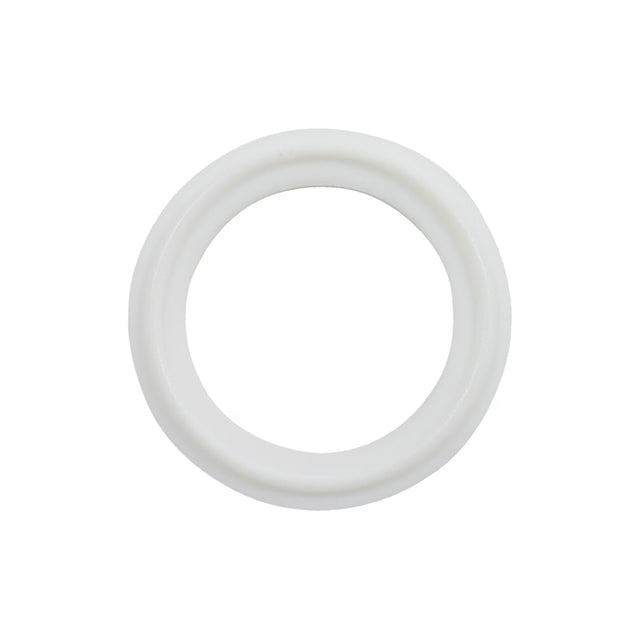

0.500" Tri-Clamp Gasket - White PTFE/Teflon - (40MPG)

Tri-Clamp Gasket – White PTFE (Teflon®) (40MPG)

PNW Sanitary Tri-Clamp Gaskets (40MPG) provide a secure, high-performance seal between Tri-Clamp ferrules in sanitary process systems. The White PTFE (Teflon®) gasket is engineered for demanding applications involving heat, pressure, and aggressive chemicals. Known for its exceptional chemical resistance and thermal stability, PTFE gaskets are ideal for environments where standard elastomers may degrade or fail.

Each gasket fits standard Tri-Clamp connections from 1/2" to 12" and ensures a tight, sanitary seal when used with compatible ferrules and clamps. PTFE offers one of the widest operating temperature ranges of any gasket material, from -100°F to 450°F (-74°C to 232°C), and maintains sealing integrity under high pressure or chemical exposure. These gaskets are USP Class VI tested and suitable for use in chemical processing, pharmaceutical, and other hygienic applications requiring inert, non-reactive sealing materials.

Features

• Material: White PTFE (Teflon®)
• Exceptional chemical and temperature resistance
• Operating range: -100°F to 450°F (-74°C to 232°C)
• Non-reactive and non-absorbent sealing surface
• Fits standard Tri-Clamp ferrules (1/2"–12")
• USP Class VI tested and FDA compliant

Applications & Compatibility

Ideal for chemical, pharmaceutical, and high-temperature sanitary systems where maximum resistance to heat, solvents, and aggressive media is required. Compatible with standard Tri-Clamp fittings from major sanitary brands.

Quality & Material Verification

Each gasket lot is traceable and labeled on its packaging. Lot-specific certificates are available upon request at the time of order.
