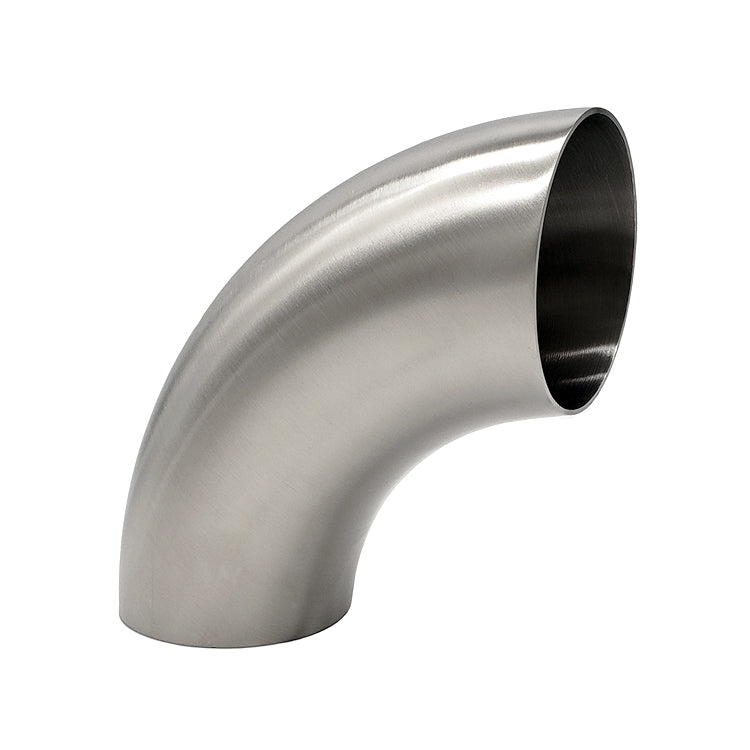

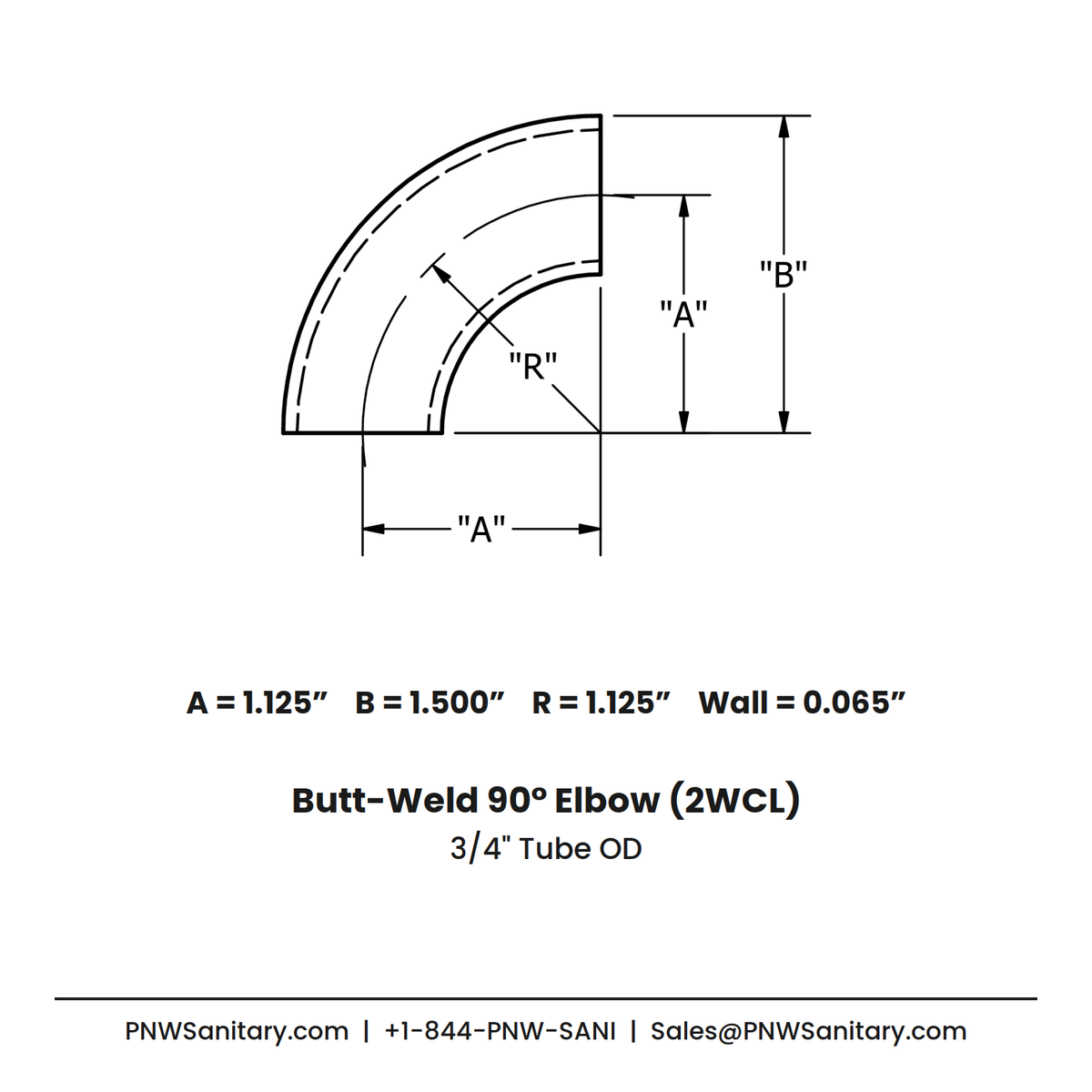

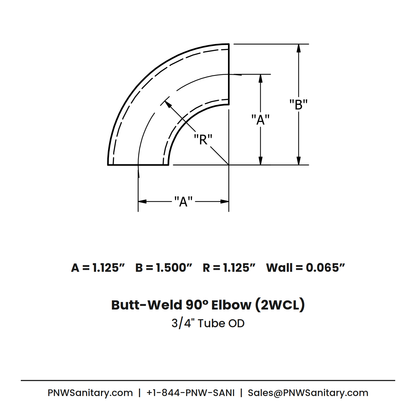

0.750" OD 16ga Butt-Weld 90° Elbow - (2WCL) - Polished OD/ID - 304 Stainless

Sanitary Butt-Weld 90° Elbow (2WCL) – 304 Stainless Steel

PNW Sanitary Butt-Weld 90° Elbows (2WCL) provide a permanent, hygienic solution for directional changes in sanitary process piping systems. Manufactured from 304 stainless steel and polished to a 32Ra sanitary finish on both ID and OD, these elbows are 3-A Certified for compliance in food, beverage, dairy, brewery, cosmetic, nutraceutical, and pharmaceutical applications.

FEATURES

• 3-A Sanitary Certified
• 304 Stainless Steel with 32Ra polished ID/OD
• Available in sizes from 1/2" through 10" OD tubing
• Offered in standard and custom centerline radii
• Capped and cleaned for sanitary protection
• Corrosion- and temperature-resistant for demanding process environments

APPLICATIONS & COMPATIBILITY

Designed for OEMs, system fabricators, and maintenance teams, PNW Sanitary 90° Butt-Weld Elbows are ideal for new process lines or replacement components. Fully compatible with leading sanitary brands, these fittings suit CIP systems, product transfer lines, and other high-purity process applications.

QUALITY & MATERIAL VERIFICATION

All PNW Sanitary elbows undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and support traceability for regulated industries.
