1-1/2" Schedule 10 Tee 304 Stainless

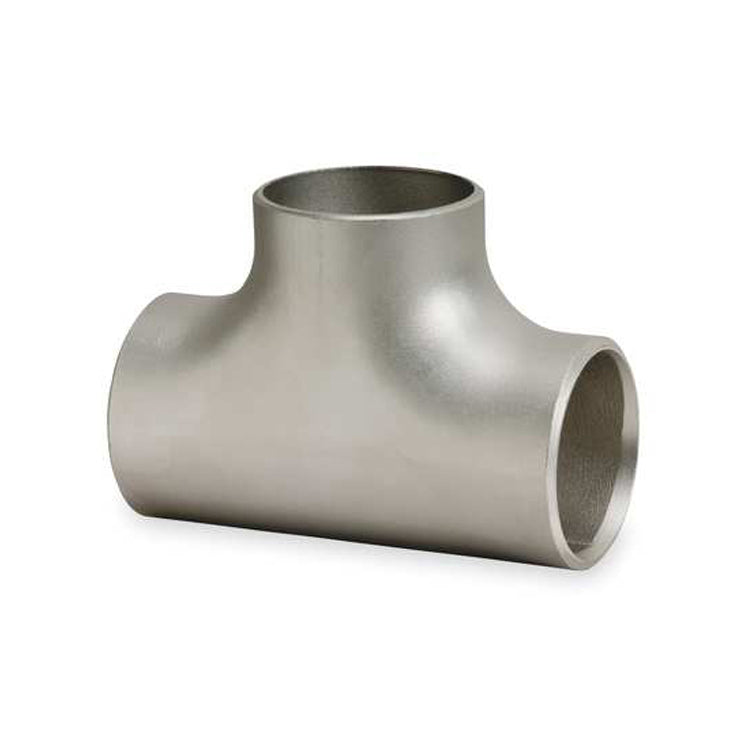

1-1/2" Schedule 10 Butt-Weld Tee – 304 Stainless Steel

PNW Sanitary 304 stainless steel Schedule 10 butt-weld tees are precision-manufactured fittings designed for nominal pipe size (NPS) stainless piping systems. This equal-length tee configuration provides a 90-degree branch connection between three pipe sections, supporting consistent flow distribution in industrial fabrication and process piping applications.

Constructed from 304 stainless steel and manufactured in accordance with ASTM A403/A960 material standards and ASME B16.9 dimensional requirements, this tee ensures reliable weld fit-up and dimensional consistency. Schedule 10 wall thickness provides a balanced combination of strength, durability, and weight efficiency for mechanical systems, structural assemblies, and general industrial service. Ends are factory-beveled for secure and consistent butt-weld installation. Fittings are ink-stamped “Ace Race Parts” for manufacturing identification.

Features

• Material: 304 stainless steel
• Wall thickness: Schedule 10
• Configuration: Equal tee (90° branch connection)
• Standards: ASTM A403/A960
• Dimensions: ASME B16.9
• Beveled ends for consistent butt-weld fit-up
• Suitable for elevated temperature service
• Ink-stamped for manufacturer identification

Applications & Compatibility

Commonly used in industrial stainless piping systems requiring a branch connection for fluid or gas distribution. Suitable for fabrication projects, mechanical installations, structural builds, and general process utility lines. Compatible with standard NPS Schedule 10 stainless pipe and butt-weld fittings manufactured to ASME B16.9 dimensions. Not intended for sanitary clamp-style or hygienic ferrule-based systems.

Quality & Material Verification

PNW Sanitary verifies stainless steel fittings through in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to confirm alloy chemistry and support material traceability.
