1-1/4" Schedule 10 45° Elbow 304 Stainless

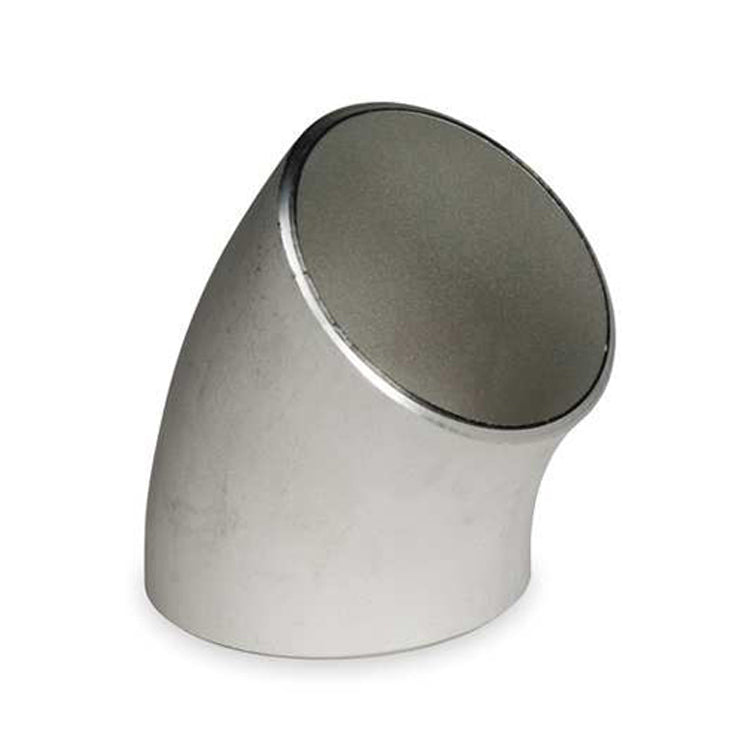

1-1/4" Schedule 10 Long Radius 45° Elbow – 304 Stainless Steel

PNW Sanitary 304 stainless steel Schedule 10 long radius 45° elbows are precision-manufactured butt-weld fittings designed for nominal pipe size (NPS) stainless piping systems. This fitting provides a smooth 45-degree directional transition with long-radius geometry that helps maintain efficient flow characteristics while minimizing turbulence and pressure drop in industrial piping applications.

Constructed from 304 stainless steel and manufactured in accordance with ASTM A403/A960 material standards and ASME B16.9 / MSS SP-43 dimensional requirements, this elbow ensures consistent weld fit-up and reliable performance. Schedule 10 wall thickness offers a lighter-weight and cost-effective alternative to Schedule 40 where heavy wall thickness is not required. Ends are factory-beveled for secure and efficient butt-weld installation. Fittings are ink-stamped “Ace Race Parts” for manufacturing identification.

• Material: 304 stainless steel
• Wall thickness: Schedule 10
• Geometry: Long radius 45° elbow
• Standards: ASTM A403/A960
• Dimensions: ASME B16.9 / MSS SP-43
• Beveled ends for consistent butt-weld fit-up
• Ink-stamped for manufacturer identification

Commonly used in industrial stainless piping systems requiring moderate directional changes while maintaining favorable flow dynamics. Suitable for fabrication projects, mechanical systems, structural builds, and general process utility lines. Compatible with standard NPS Schedule 10 stainless pipe and butt-weld fittings manufactured to ASME B16.9 / MSS SP-43 dimensions. Not intended for sanitary clamp-style or hygienic ferrule-based systems.

PNW Sanitary verifies stainless steel fittings through in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to confirm alloy chemistry and support material traceability.
