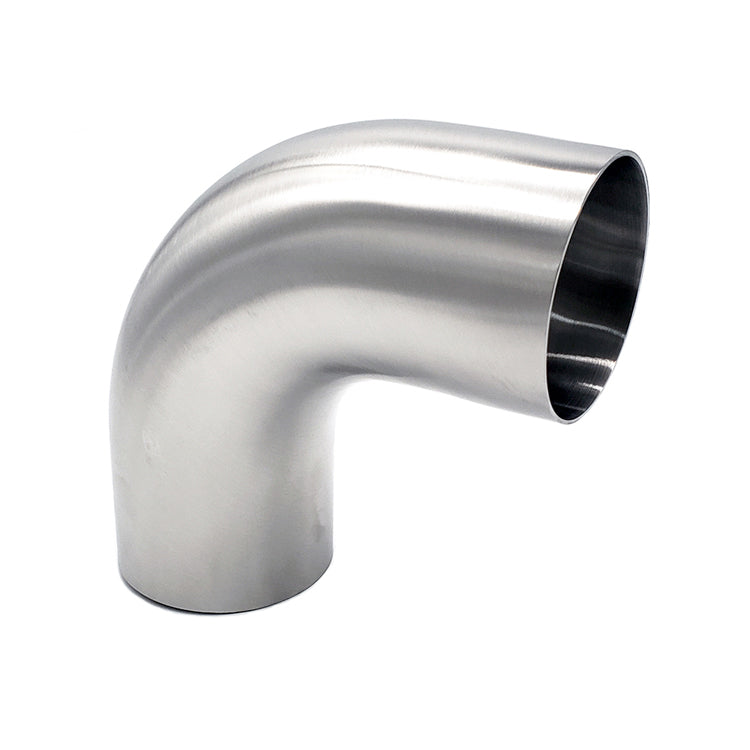

2.000" 16ga Tight Radius Butt-Weld 90° Elbow with Tangents - (L2S - Special) - Polished OD/ID - 304 Stainless

Tight Radius Butt-Weld 90° Elbow with Tangents (L2S – Special) – 304 Stainless Steel

PNW Sanitary Tight Radius Butt-Weld 90° Elbows with Tangents (L2S – Special) provide a compact, permanent right-angle transition for welded stainless process piping. Unlike standard 1.5D long-radius elbows, this tight-radius version offers a significantly reduced centerline radius for installations with limited space or equipment clearance constraints. Manufactured from 304 stainless steel and polished to a 32Ra sanitary finish on both the ID and OD, these elbows follow 3-A dimensional and material practices but are not 3-A certified because they are not laser-marked with size or alloy identifiers. For applications requiring a certified component, please see our 3-A Certified Tight Radius 90° Elbow with Tangents (L2S).

Tangent ends provide additional straight-run length for improved weld accessibility, alignment, and heat control during installation. This configuration is ideal for OEM fabrication, equipment builds, and hygienic process lines where space is limited and formal 3-A marking is not required.

Features

• 304 stainless steel construction
• Tight-radius 90° design for compact piping layouts
• Tangents for easier weld access and alignment
• Polished 32Ra ID/OD sanitary finish
• Available in multiple sanitary tube OD sizes
• Not 3-A Certified

Applications & Compatibility

Ideal for welded sanitary systems requiring a compact 90° change in direction with welding tangents where 3-A certification is optional. Fully compatible with standard sanitary tubing and weld fittings from major industry brands.

Quality & Material Verification

All PNW Sanitary Special-series fittings undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and ensure full traceability.
