2.000" Bevel Seat Solid End Cap - (16A) - 316L Stainless

2.000" Bevel Seat Solid End Cap - (16A) - 316L Stainless

Out of stock

PNW Sanitary

16A-2.0-316

$18.95
$18.95
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Free Shipping on $100+ Orders

Guaranteed Satisfaction

✓ Direct from Manufacturer
✓ PMI Tested & Verified
✓ 3-A Certified Facilities
✓ Premium Quality, Fair Pricing
Large order? Request a quote

We're happy to help.

Sold out

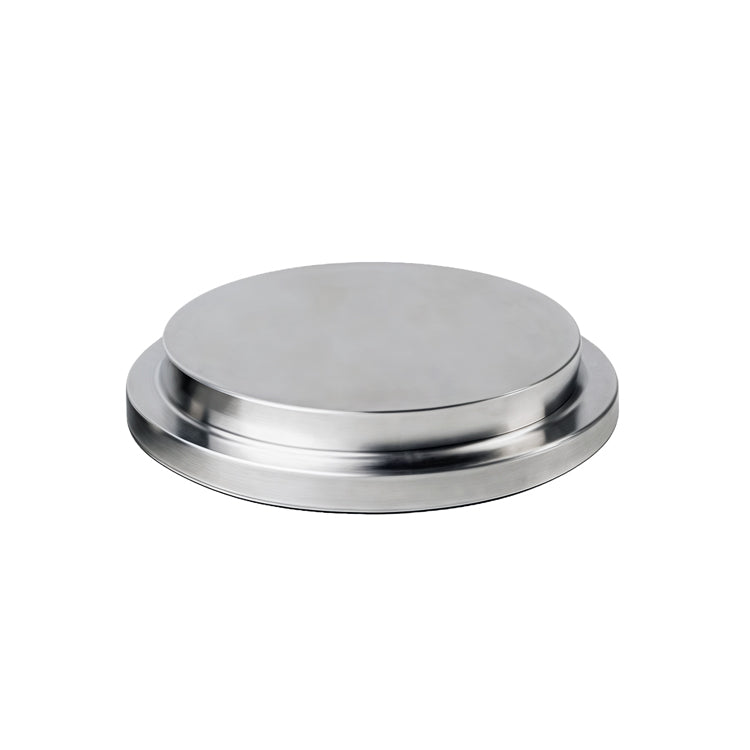

Bevel Seat Solid End Cap (16A) – 316L Stainless Steel

PNW Sanitary Bevel Seat Solid End Caps (16A) provide a fast, hygienic method of sealing bevel seat process lines when not in use. Secured to a threaded bevel ferrule with a union hex nut, these caps protect sanitary piping from contamination while maintaining system rigidity.

Manufactured from 316L stainless steel and polished to a 32Ra sanitary finish, the caps are 3-A Certified and offer enhanced corrosion resistance, making them well suited for aggressive cleaning regimens, high-purity systems, and pharmaceutical applications. Available in sizes up to 4" OD and fully compatible with bevel seat fittings from leading sanitary brands.

FEATURES

  • 3-A Sanitary Certified
  • 316L Stainless Steel construction for superior corrosion resistance
  • Polished ID/OD with 32Ra finish
  • Sizes up to 4" OD
  • Secures to threaded bevel ferrule with union hex nut
  • Provides secure, contamination-resistant line closure

APPLICATIONS & COMPATIBILITY

Ideal for terminating process lines during shutdown, maintenance, or reconfiguration; dimensionally compatible with bevel seat unions from leading sanitary brands.

QUALITY & MATERIAL VERIFICATION

All PNW Sanitary bevel seat components undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and ensure traceability.

CROSS-REFERENCE

Wayland Alfa Laval Dixon VNE Topline Sanitary Solutions
W16A 16A 16A 16A 16A SS16A

Bulk order

Product Subtotal Quantity Price Subtotal
2.000" Bevel Seat Solid End Cap - (16A) - 316L Stainless
2.000" Bevel Seat Solid End Cap - (16A) - 316L Stainless16A-2.0-316
2.000" Bevel Seat Solid End Cap - (16A) - 316L Stainless16A-2.0-316
$18.95/ea		 $0.00
Sold out
$18.95/ea $0.00

CERTIFICATIONS & COMPLIANCE

✓ 3-A Sanitary Standards Compliant
✓ Produced in certified facilities
✓ Material: 316L Stainless
✓ PMI tested for material verification
✓ MTR (Material Test Report) available
✓ Certificate of Conformance available
✓ Meets FDA requirements for food contact

All certifications are our own - not borrowed from other manufacturers.

MANUFACTURER DIRECT QUALITY GUARANTEE

We manufacture what we sell. If there's ever an issue with material quality or certification, we make it right - because we control the entire production process.

PMI TESTED & VERIFIED

Material Test Reports (MTR) available upon request for all products.

Every batch is tested in-house using our SciAps X-550 XRF analyzer.

WHY PNW SANITARY?

✓ Direct from Manufacturer - No middleman markup
✓ PMI Tested & Verified - Every batch tested in-house with SciAps X-550
✓ 3-A Certified Facilities - Same production standards as major brands
✓ Premium Quality, Fair Pricing
