2-1/2" Schedule 10 Long Radius 90° Elbow 304 Stainless

2" Schedule 10 Long Radius 90° Elbow – 304 Stainless Steel

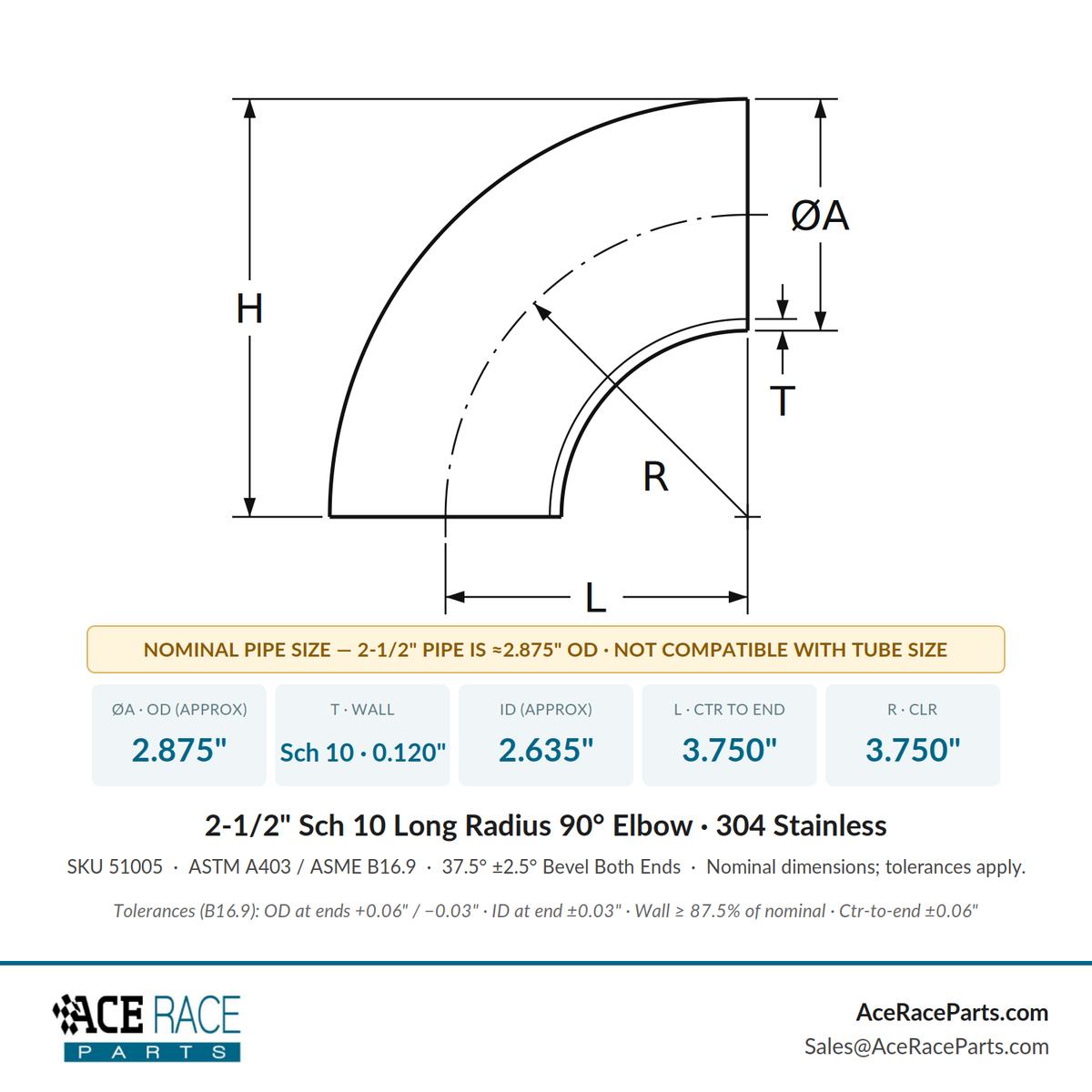

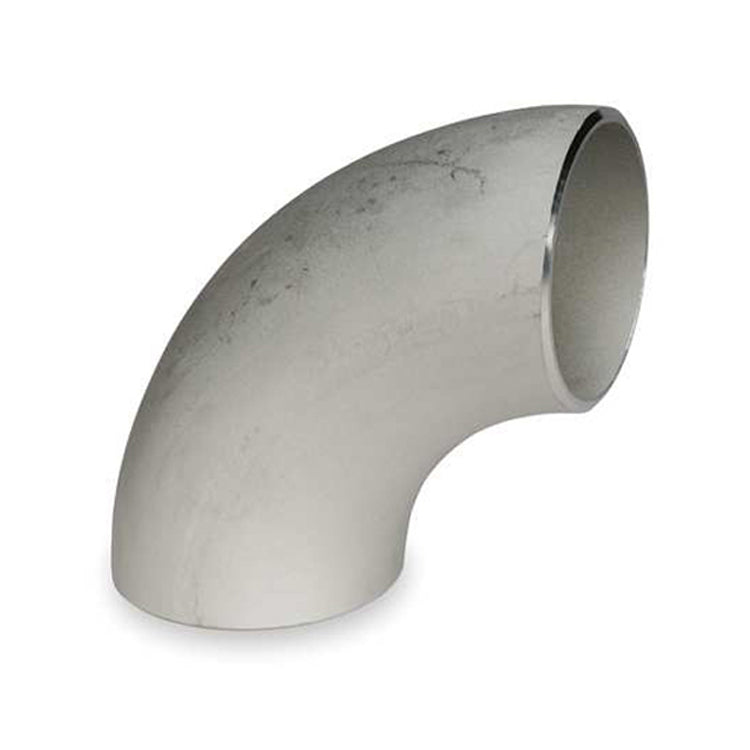

PNW Sanitary 304 stainless steel Schedule 10 long radius 90° elbows are precision-manufactured butt-weld fittings designed for nominal pipe size (NPS) stainless piping systems. This fitting provides a smooth 90-degree directional change with long-radius geometry that helps reduce turbulence and pressure drop compared to short-radius alternatives, making it well suited for industrial process, fabrication, and mechanical piping applications.

Constructed from 304 stainless steel and produced in accordance with ASTM A403/A960 material standards and ASME B16.9 / MSS SP-43 dimensional requirements, this elbow ensures consistent weld fit-up and reliable performance. Schedule 10 wall thickness offers a lighter-weight, cost-effective solution for systems where Schedule 40 is not required. Ends are factory-beveled for efficient and secure butt-weld installation. Fittings are ink-stamped “Ace Race Parts” for manufacturing identification.

Features

• Material: 304 stainless steel
• Wall thickness: Schedule 10
• Geometry: Long radius 90° elbow
• Standards: ASTM A403/A960
• Dimensions: ASME B16.9 / MSS SP-43
• Beveled ends for consistent butt-weld fit-up
• Ink-stamped for manufacturer identification

Applications & Compatibility

Commonly used in industrial stainless piping, fabrication projects, utility systems, and general process lines requiring corrosion resistance and dependable weld geometry. Compatible with standard NPS Schedule 10 stainless pipe and butt-weld fittings manufactured to ASME B16.9 / MSS SP-43 dimensions. Not intended for sanitary clamp-style or hygienic ferrule-based systems.

Quality & Material Verification

PNW Sanitary verifies stainless steel fittings through in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to confirm alloy chemistry and support material traceability.
