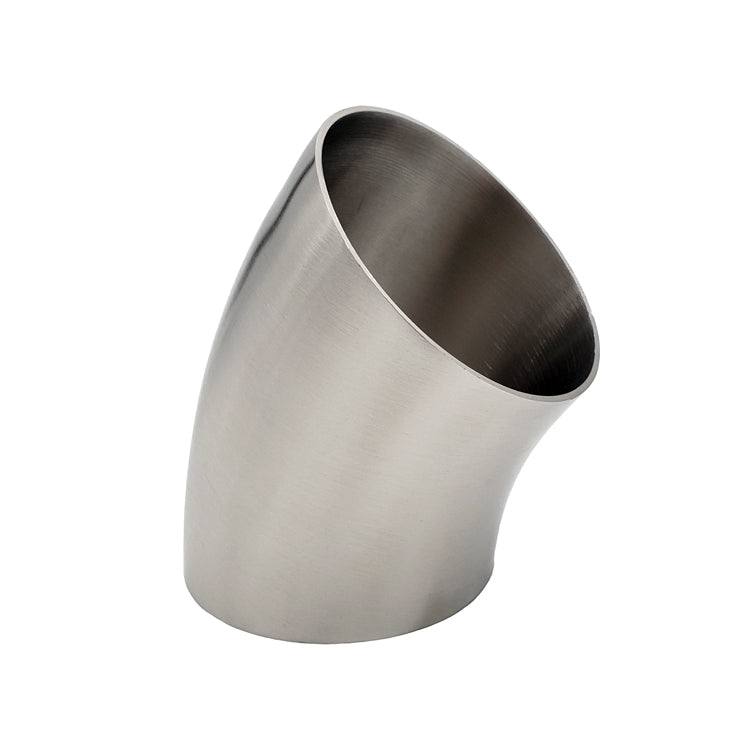

2.500" OD 16ga Butt-Weld 45° Elbow - (2WK) - Polished OD/ID - 316L Stainless

Sanitary Butt-Weld 45° Elbow (2WK) – 316L Stainless Steel

PNW Sanitary Butt-Weld 45° Elbows (2WK) provide a permanent, hygienic solution for directional transitions in sanitary process piping systems. Manufactured from 316L stainless steel and polished to a 32Ra sanitary finish on both ID and OD, these elbows are 3-A Certified and offer enhanced corrosion resistance, making them well suited for aggressive cleaning regimens, high-purity systems, and pharmaceutical applications.

FEATURES

• 3-A Sanitary Certified
• 316L Stainless Steel construction for superior corrosion resistance
• Polished ID/OD with 32Ra finish
• Available in sizes from 1/2" through 10" OD tubing
• Offered in standard and custom centerline radii
• Capped and cleaned for sanitary protection
• Corrosion- and temperature-resistant for demanding process environments

APPLICATIONS & COMPATIBILITY

PNW Sanitary 45° Butt-Weld Elbows are commonly used by OEMs, fabricators, and maintenance teams where smooth directional changes are needed in permanent sanitary process lines. Fully compatible with leading sanitary brands, they are well-suited for CIP systems, product transfer lines, and high-purity applications.

QUALITY & MATERIAL VERIFICATION

All PNW Sanitary elbows undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and support traceability for regulated industries.

CROSS-REFERENCE
