2" Schedule 10 Short Radius 90° Elbow – 304 Stainless Steel

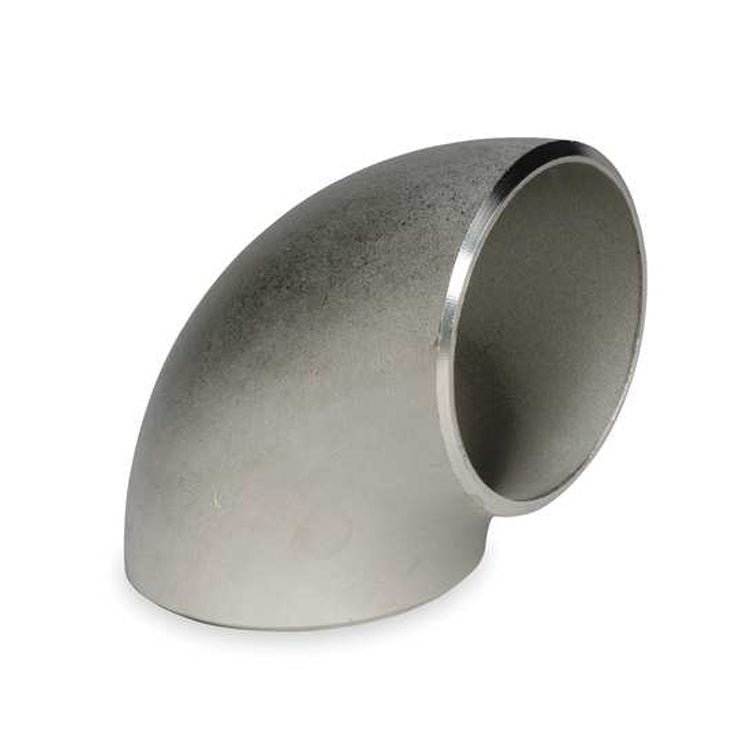

PNW Sanitary 304 stainless steel Schedule 10 short radius 90° elbows are precision-manufactured butt-weld fittings designed for nominal pipe size (NPS) stainless piping systems. This fitting provides a compact 90-degree directional change with short-radius geometry, making it ideal for installations where space constraints or tight piping layouts require a reduced centerline radius.

Constructed from 304 stainless steel and manufactured in accordance with ASTM A403/A960 material standards and ASME B16.9 dimensional requirements, this elbow delivers consistent weld fit-up and dependable performance. Schedule 10 wall thickness provides a lighter-weight and cost-effective alternative to Schedule 40 in applications where heavier wall thickness is not required. Ends are factory-beveled for secure and efficient butt-weld installation. Fittings are ink-stamped “Ace Race Parts” for manufacturing identification.

Features

• Material: 304 stainless steel
• Wall thickness: Schedule 10
• Geometry: Short radius 90° elbow for compact layouts
• Standards: ASTM A403/A960
• Dimensions: ASME B16.9
• Beveled ends for consistent butt-weld fit-up
• Ink-stamped for manufacturer identification

Applications & Compatibility

Commonly used in industrial stainless piping systems where tight turning radius is required, including mechanical rooms, fabrication projects, structural builds, and general process utility lines. Compatible with standard NPS Schedule 10 stainless pipe and butt-weld fittings manufactured to ASME B16.9 dimensions. Not intended for sanitary clamp-style or hygienic ferrule-based systems.

Quality & Material Verification

PNW Sanitary verifies stainless steel fittings through in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to confirm alloy chemistry and support material traceability.
